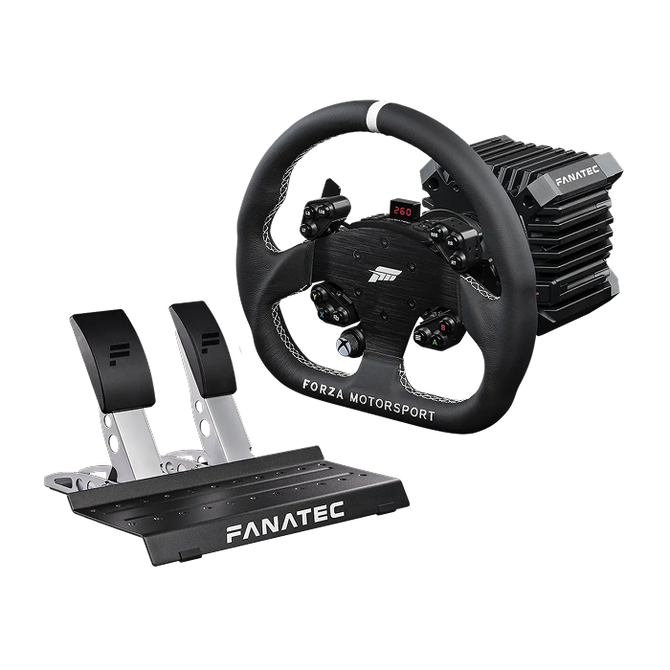

Fanatec CSL DD QR2 Ready2Race Forza Motorsport Bundle 5 Nm

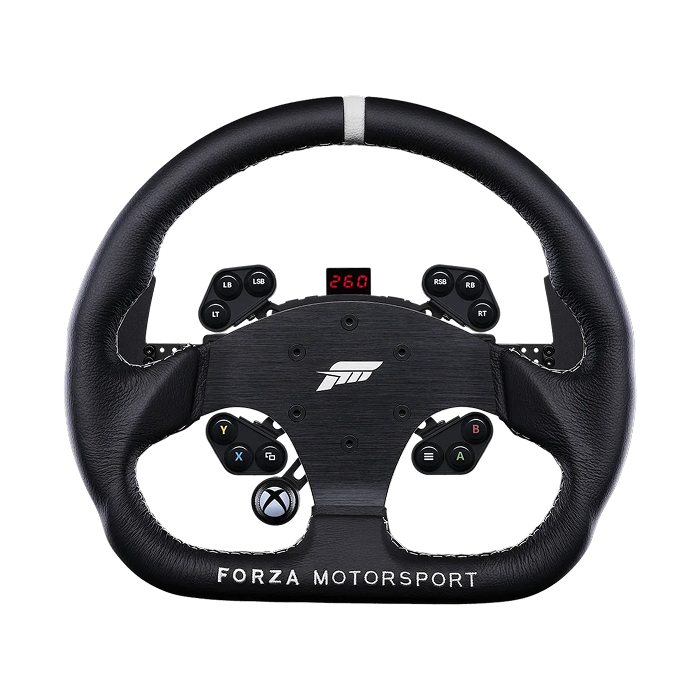

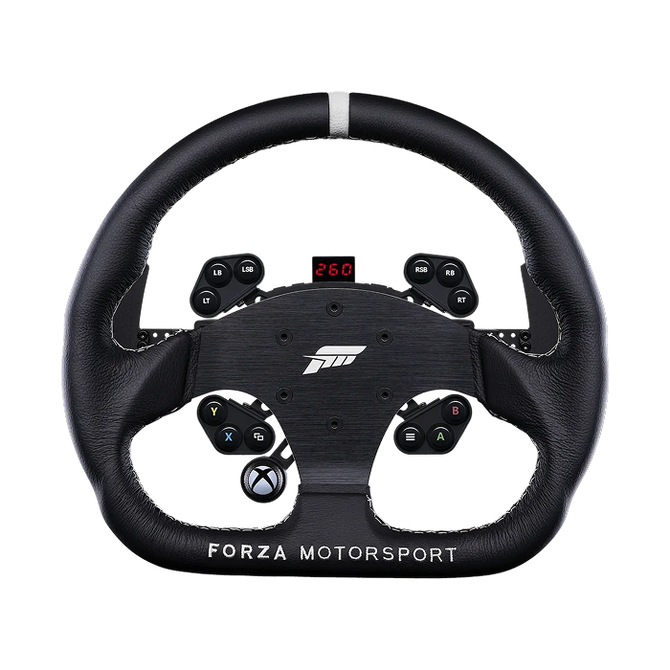

ClubSport Wheel Rim GT Forza Motorsport:

  • Aluminium wheel rim with a diameter of 330 mm
  • Genuine leather (smooth)
  • Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
  • High-resolution (contactless) Hall-position-sensor, same as Podium Series
  • Steering axis made from carbon fibre-enhanced composite
  • Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
  • Rotation: 2520 degrees (electronically limited, adjustable)
  • Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data to steering wheels
  • QR2 quick release system
    • Motorsport-derived quick release
    • Tapered shape naturally ensures a tight fit
    • Carbon fibre-reinforced polyamide construction
    • Exchangeable
  • T-nut rail system on sides and bottom for easily adjustable hard-mounting
  • Optional table clamp (sold separately), supports 5 to 60 mm table thickness
  • Ports:
    • Power supply
    • USB-C to PC / console
    • Fanatec DataPort-C
    • Shifter 1
    • Shifter 2 (Sequential only)
    • Pedal
    • Handbrake
  • Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

ClubSport Universal Hub V2 for Xbox:

  • Enables Xbox One and Xbox Series X|S compatibility on all connected Fanatec hardware
  • Can be used with all Fanatec wheel rims and all third-party rims using the 6 x 70 mm or 3 x 50 mm bolt pattern (e.g. Sparco, MOMO, OMP)
  • Fully assembled and pre-configured to mount the Fanatec Wheel Rim GT (or similar)
  • Improved electronics mean hub is firmware-updatable
  • ClubSport Magnetic Paddle Module preinstalled
    • 3 mm-thick, black anodised aluminium paddle plates
    • Paddle module cage made of CNC machined aluminium
    • Neodymium magnets
    • Two sets of paddle plates for small and large steering wheels
    • Paddle Plate Spacers to adjust to different steering wheel diameters
    • Additional spacers to adjust distance of shifter paddles to wheel rim
    • Paddle module easily upgradable to Podium Advanced Paddle Module (optional)
  • Detachable button caps with Xbox symbols, interchangeable with the included racing-style button caps
  • 16 integrated buttons on top of the hub
  • Four button clusters with three buttons each
  • 7-way Funky Switch: left, right, up, and down directional inputs, push button, and rotary encoder functionality
  • Tuning Menu button for instant access to force feedback and other Fanatec hardware adjustments
  • Three-digit LED display for Tuning Menu functions and telemetry data from compatible games or third-party software. It can be installed in two positions: upright or flat
  • Shifter paddle units, button clusters, and Funky Switch can be removed to save weight
  • DataPort-C connector for Podium Button Module Endurance (optional)
  • Allows the use of third-party USB steering wheels on all compatible Fanatec bases (direct USB connectivity is not possible)
  • An additional fifth button cluster can be attached (not included)
  • QR2 Wheel-Side upgrade included (must be installed before use)

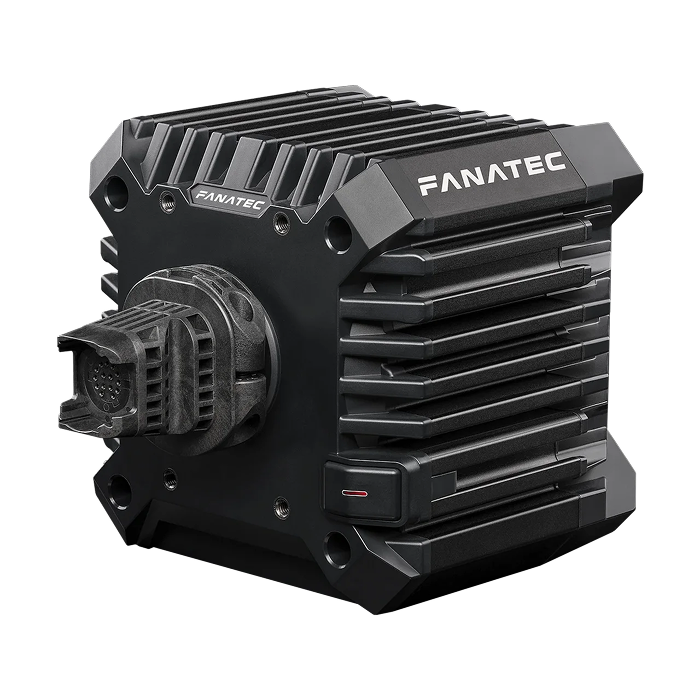

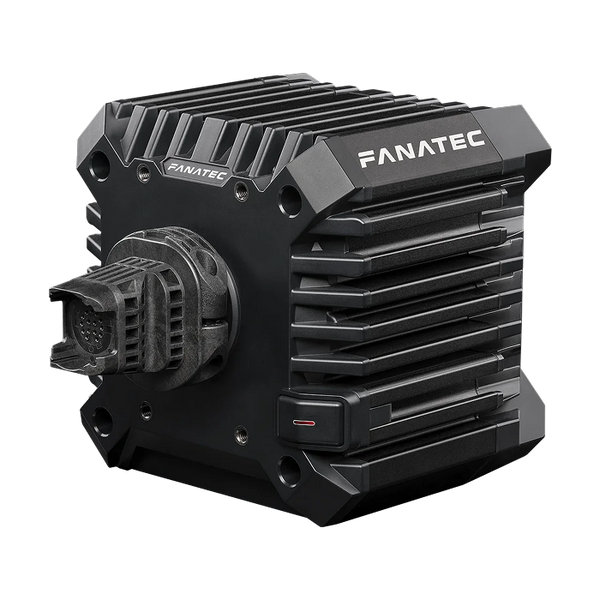

CSL DD QR2:

  • Direct-Drive system delivers instant, detailed force feedback
  • Linear, consistent performance (5 Nm peak torque)
  • Optional Boost Kit 180 (sold separately) unlocks maximum strength (8 Nm peak torque)
  • Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
  • Full Fanatec SDK support ensures game compatibility out of the box for all major racing games
  • Standard Tuning Menu allows beginners to get started quickly without having to worry about settings

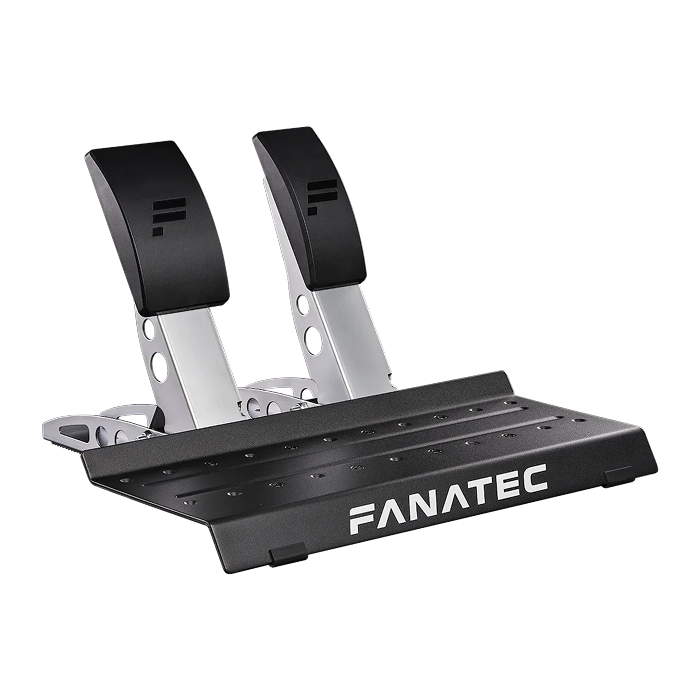

CSL Pedals:

  • Two-pedal set (throttle and brake), upgradeable to three pedals
  • All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
  • Optional anodised aluminium pedal plates
  • Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability
  • Brake pedal spring is stiffer than throttle pedal spring. PU foam damper adds additional resistance for progressive braking feel
  • Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit
    • CSL Pedals Clutch Kit provides a third pedal for the lowest price
    • CSL Pedals Load Cell Kit also provides a third pedal, and upgrades the brake and electronics
  • Pedal position can be adjusted sideways along heel rest
  • Height-adjustable pedal faces
  • Modular design means inverted mounting to a rig is possible
  • Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
  • Pearl chrome plating on pedal bases and arms
  • Black powder coating on heel rest
  • Pedals connect directly to all compatible Fanatec Wheel Bases

Brand:
Systems supported:
KSh190,500.00 KSh195,500.00
Quantity :
X

Notify me when Fanatec CSL DD QR2 Ready2Race Forza Motorsport Bundle 5 Nm - Fanatec / XBOX Series X/S becomes available.
